335 Series Float Collar Cementing Float Equipment Drilling PDC

335 Series Float Collar Cementing

PDC Pengeboran Peralatan Float PDC

PDC float collar cementing

Tempat asal:

Cina

Nama merek:

SWS

Nomor model:

335

Hubungi kami

Permintaan Penawaran

335 Series Float Collar Cementing Float Equipment Drilling PDC

Rincian Produk

bahan:

100% PDK

Fungsi:

Dapat digunakan kembali

Jenis:

nilai tunggal

Fungsi 2:

kait opsional di colokan penghapus pipa bor

Produk-produk terkait

Peralatan Float Cementing Suhu Tinggi yang Dirancang dengan Sambungan Threaded

Dapatkan Harga Terbaik

Double Plug Cement Head Dengan Adaptor Kunci Cepat

Dapatkan Harga Terbaik

Tekanan Kerja Tinggi Berputar Kepala Semen Ringan Disesuaikan

Dapatkan Harga Terbaik

Alat Pengeboran Lapangan Minyak Kunci Single Plug Pengeboran Pipa Kepala Semen

Dapatkan Harga Terbaik

Hubungi kami

86-519-83553967

Leo@service-js.com

86-519-83553967

Hubungi sekarang

Deskripsi Produk

335 SERI STAB-IN DAN LATCH-IN FLOAT COLLAR SINGLE VALVE

(STAB-IN LATCH-IN TYPE ) 335 SERIES FLOAT COLLAR SINGLE VALVE , CEMENTING TOOL,FLOAT EQUIPMENT, WELL BORE TOOLSS

KEUNTUNGAN DAN FITUR UTAMA

1- 100% PDC dapat dibor termasuk komponennya

2- Dorong operasi putar keluar

3- Penyengat latch-in pipa bor yang dapat digunakan kembali

4- Colokan penghapus pipa latch-in opsional

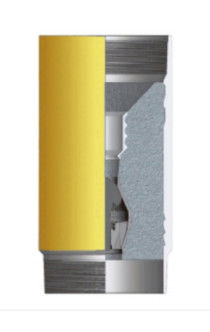

335 Series Float Collar Cementing Float Equipment Drilling PDC 0

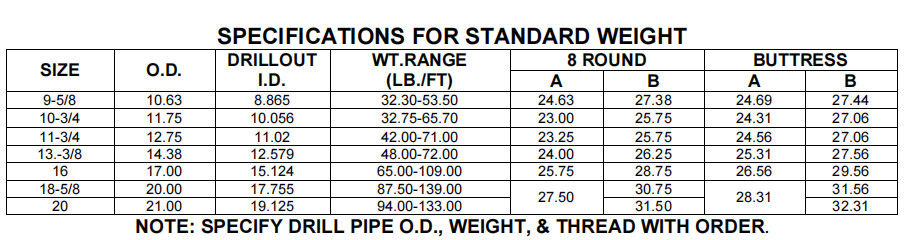

335 Series Float Collar Cementing Float Equipment Drilling PDC 1

Panduan sepatu, Float shoe & Float collar Dimensi							Kisaran berat casing
Ukuran (OD casing)		Jenis	OD		Pengeboran ID		Sepatu Float&Guide		Kerah mengambang
di dalam	mm		di dalam	mm	di dalam	mm	lb/ft	kg/m	lb/ft	kg/m
4-1/2.	114.3	St	5	127	4	101.6	9.5-13.5	14.15-20.11	9.5-13.5	14.15-20.11
4-1/2.	114.3	PG	5	127	3.895	98.93	11.6-15.1	17.28-22.49	11.6-15.1	14.15-20.11
5	127	St	5.56	141.22	4.408	111.96	13-18	19.36-26.81	13-18	19.36-26.81
5	127	PG	5.56	141.22	4.389	111.48	13-18	19.36-26.81	13-18	19.36-26.81
5-1/2.	139.7	St	6.05	153.67	4.907	124.64	14-23	20.85-34.26	14-23	20.85-34.26
5-1/2.	139.7	PG	6.05	153.67	4.787	121.59	17-23	25.32-34.26	17-23	25.32-34.26
6-5/8.	168.28	St	7.39	187.1	5.944	150,98	20-32	29.79-47.66	20-32	29.79-47.66
6-5/8.	168.28	PG	7.39	187.1	5.944	150,98	20-32	27.79-47.66	20-32	27.79-47.66
7	177.8	St	7.66	194.56	6.351	161.32	20-35	29.79-52.13	20-32	29.79-47.66
7	177.8	PG	7.66	194.56	6.27	159.26	23-38	34.26-56.6	23-38	34.26-56.6
7-5/8.	193.7	St	8.5	215.9	6.864	174.35	26.4-47.1	39.32-70.16	26.4-39	39.32-58.09
7-5/8.	193.7	PG	8.5	215.9	6.864	174.35	26.4-47.1	39.32-70.16	26.4-39	39.32-58.09
8-5/8.	219.1	St	9.63	244.6	7.992	203	24-49	35.75-72.99	24-49	35.75-72.99
8-5/8.	219.1	PG	9.63	244.6	7.845	199.26	32-49	47.66-72.99	32-49	47.66-72.99
9-5/8.	244.5	St	10.63	270	8.865	225.17	32.3-53.5	48.11-79.69	32.3-53.5	48.11-79.69
9-5/8.	244.5	PG	10.63	270	8.699	220.96	40-71.8	59.58-106.85	40-58.4	59.58-86.99
10-3/4.	273.1	St	11.75	298.45	10.056	255.42	32.75-65.7	48.78-97.86	32.75-55.5	48.78-82.67
10-3/4.	273.1	PG	11.75	298.45	9.77	248.16	51-71.1	75.96-105.9	51-71	75.96-105.9
11-3/4.	298.5	St	12.75	323.85	11.02	279.91	42-71	62.56-105.75	42-60	62.56-89.37
11-3/4.	298.5	PG	12.75	323.85	10.77	273.56	54-71	80.43-105.75	54-71.1	80.43-105.81
13-3/8.	339.7	St	14.38	365.25	12.579	319.51	48-72	71.5-107.24	48-72	71.5-107.24
13-3/8.	339.7	PG	14.38	365.25	12.579	319.51	48-86	71.5-128.1	48-72	71.5-107.24
16	406.4	St	17	431.8	15.124	384.15	65-109	96.82-162.36	65-97	96.82-144.36
18-5/8.	473.1	St	20	508	17.755	450,98	87.5-139	130.33-206.85	87,5-106	130.33-157.75
20	508	St	21	533.4	19.125	485.78	94-133	140.01-198.1	94-106.5	140.01-158.63

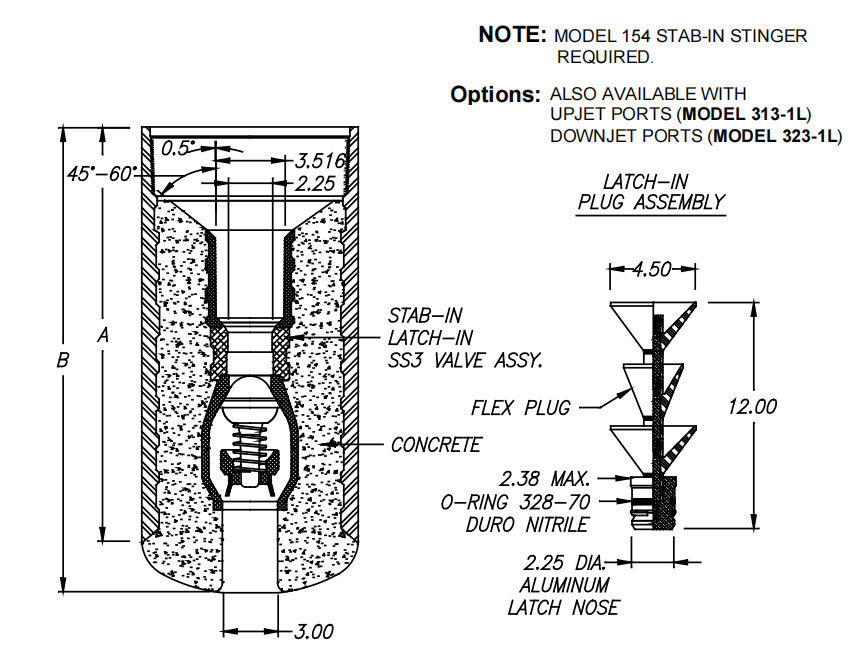

335 Series Float Collar Cementing Float Equipment Drilling PDC 2
