333 Series Single Valve Float Shoe Casing Float Shoe Minyak Dan Gas

Brand Name:	SWS
Model Number:	333
MOQ:	MOQ sesuai persyaratan jenis
Price:	Details pls contact our staff
Delivery Time:	Detail ex-mill pengiriman perlu didiskusikan
Payment Terms:	T/T atau LC tidak dapat dibatalkan Terlihat

Detail Information

Deskripsi Produk

Detail Information

Tempat asal:

Cina

bahan:

100% PDK

Fungsi:

Dapat digunakan kembali

Jenis:

nilai tunggal

Fungsi 2:

kait opsional di colokan penghapus pipa bor

Kemasan rincian:

Pengemasan standar ekspor dan persyaratan lainnya harus diklarifikasi terlebih dahulu

Menyediakan kemampuan:

sebagai persyaratan

Menyoroti:

333 Series Single Valve Float Shoe

Casing Float Shoe Oil And Gas

Single Valve Float Shoe Casing

Deskripsi Produk

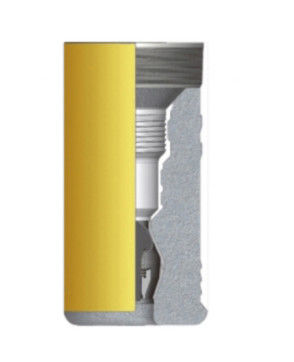

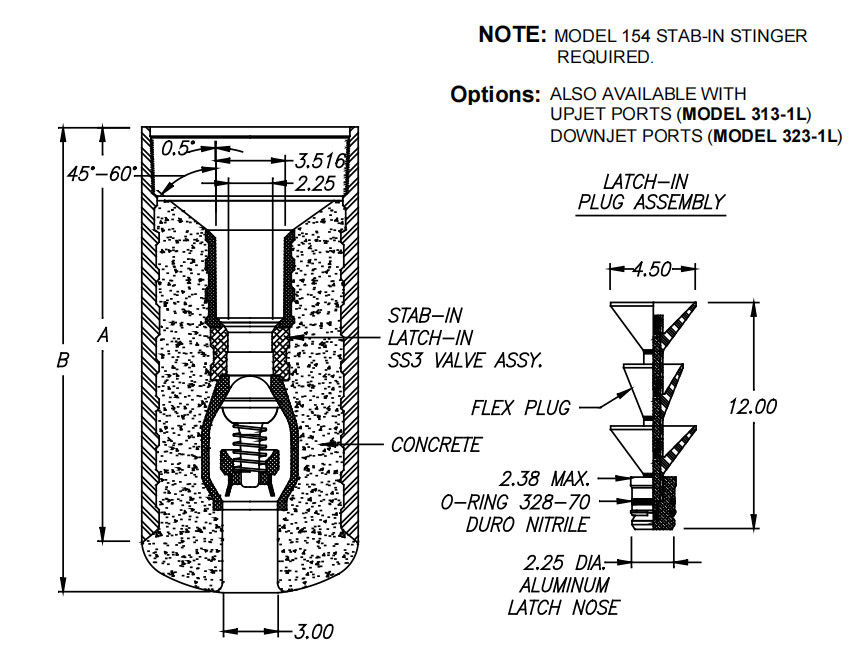

333SERIES STAB-IN DAN LATCH-IN FLOAT SHOE SINGLE VALVE

(STAB-IN LATCH-IN TYPE ) 333 SERIES FLOAT SHOE SINGLE VALVE , CMENTING TOOLS, FLOAT EQUIPMENT, WELL BORE TOOLS

KEUNTUNGAN DAN FITUR UTAMA

1- 100% PDC dapat dibor termasuk komponennya

2- Dorong operasi putar keluar

3- Penyengat latch-in pipa bor yang dapat digunakan kembali

4- Colokan penghapus pipa latch-in opsional

333 Series Single Valve Float Shoe Casing Float Shoe Minyak Dan Gas 0

333 Series Single Valve Float Shoe Casing Float Shoe Minyak Dan Gas 1

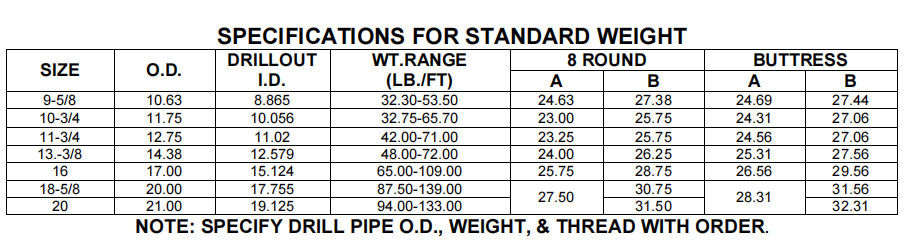

Panduan sepatu, Float shoe & Float collar Dimensi							Kisaran berat casing
Ukuran (OD casing)		Jenis	OD		Pengeboran ID		Sepatu Float&Guide		Kerah mengambang
di dalam	mm		di dalam	mm	di dalam	mm	lb/ft	kg/m	lb/ft	kg/m
4-1/2.	114.3	St	5	127	4	101.6	9.5-13.5	14.15-20.11	9.5-13.5	14.15-20.11
4-1/2.	114.3	PG	5	127	3.895	98.93	11.6-15.1	17.28-22.49	11.6-15.1	14.15-20.11
5	127	St	5.56	141.22	4.408	111.96	13-18	19.36-26.81	13-18	19.36-26.81
5	127	PG	5.56	141.22	4.389	111.48	13-18	19.36-26.81	13-18	19.36-26.81
5-1/2.	139.7	St	6.05	153.67	4.907	124.64	14-23	20.85-34.26	14-23	20.85-34.26
5-1/2.	139.7	PG	6.05	153.67	4.787	121.59	17-23	25.32-34.26	17-23	25.32-34.26
6-5/8.	168.28	St	7.39	187.1	5.944	150,98	20-32	29.79-47.66	20-32	29.79-47.66
6-5/8.	168.28	PG	7.39	187.1	5.944	150,98	20-32	27.79-47.66	20-32	27.79-47.66
7	177.8	St	7.66	194.56	6.351	161.32	20-35	29.79-52.13	20-32	29.79-47.66
7	177.8	PG	7.66	194.56	6.27	159.26	23-38	34.26-56.6	23-38	34.26-56.6
7-5/8.	193.7	St	8.5	215.9	6.864	174.35	26.4-47.1	39.32-70.16	26.4-39	39.32-58.09
7-5/8.	193.7	PG	8.5	215.9	6.864	174.35	26.4-47.1	39.32-70.16	26.4-39	39.32-58.09
8-5/8.	219.1	St	9.63	244.6	7.992	203	24-49	35.75-72.99	24-49	35.75-72.99
8-5/8.	219.1	PG	9.63	244.6	7.845	199.26	32-49	47.66-72.99	32-49	47.66-72.99
9-5/8.	244.5	St	10.63	270	8.865	225.17	32.3-53.5	48.11-79.69	32.3-53.5	48.11-79.69
9-5/8.	244.5	PG	10.63	270	8.699	220.96	40-71.8	59.58-106.85	40-58.4	59.58-86.99
10-3/4.	273.1	St	11.75	298.45	10.056	255.42	32.75-65.7	48.78-97.86	32.75-55.5	48.78-82.67
10-3/4.	273.1	PG	11.75	298.45	9.77	248.16	51-71.1	75.96-105.9	51-71	75.96-105.9
11-3/4.	298.5	St	12.75	323.85	11.02	279.91	42-71	62.56-105.75	42-60	62.56-89.37
11-3/4.	298.5	PG	12.75	323.85	10.77	273.56	54-71	80.43-105.75	54-71.1	80.43-105.81
13-3/8.	339.7	St	14.38	365.25	12.579	319.51	48-72	71.5-107.24	48-72	71.5-107.24
13-3/8.	339.7	PG	14.38	365.25	12.579	319.51	48-86	71.5-128.1	48-72	71.5-107.24
16	406.4	St	17	431.8	15.124	384.15	65-109	96.82-162.36	65-97	96.82-144.36
18-5/8.	473.1	St	20	508	17.755	450,98	87.5-139	130.33-206.85	87,5-106	130.33-157.75
20	508	St	21	533.4	19.125	485.78	94-133	140.01-198.1	94-106.5	140.01-158.63
