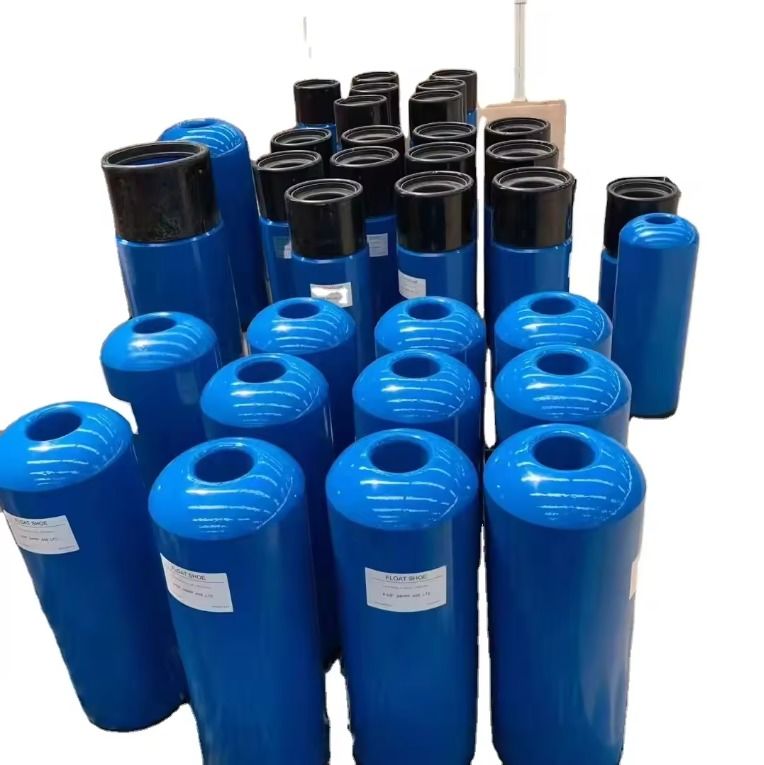

Double Valve Cementing Float Shoe 5 1/2in LCSG Thread for Well Drilling

MOQ:	1

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Berat:

2 kg

Tipe katup:

Katup tunggal & katup ganda

Jenis mesin:

Alat pengeboran

Jenis pemrosesan:

Penempaan

Bahan:

Tingkat baja

Jenis Thread:

Ukuran:

5 1/2 ", 7", 9 5/8 ", 13 3/8"

Bore od:

6 ", 7 5/8", 10 5/8 ", 14 3/8"

ID Bore:

4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"

Min bore:

2 ", 2 3/8"

Jenis Thread:

5 1/2 "LCSG, 7" LCSG, 9 5/8 "LCSG, 13 3/8" LCSG

Peringkat tekanan:

4351 lb/in2, 3626 lb/in2

Jenis:

padat

Komponen inti:

Katup

menggunakan:

Pengeboran dengan baik

Menyoroti:

5 1/2in cementing float shoe

double valve float shoe for well drilling

LCSG thread cementing float equipment

Deskripsi Produk

Double Valve Cementing Offshore Onshore Float Shoe Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. Also, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures great accuracy of cement slurry displacement. Specifications Name Size(in) Bore O.D.(in) Bore I.D.(in) Min
