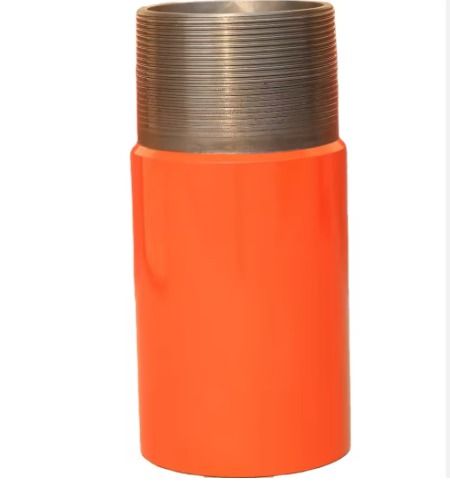

API 5CT Double Valve Casing Float Shoe 2KG for Well Drilling

API 5CT casing float shoe

double valve float shoe for drilling

well drilling float shoe 2KG

Tempat asal:

Cina

Sertifikasi:

ISO API

Hubungi kami

Permintaan Penawaran

API 5CT Double Valve Casing Float Shoe 2KG for Well Drilling

Rincian Produk

Berat:

2 kg

Komponen inti:

Katup

Tipe katup:

Katup tunggal & katup ganda

Jenis mesin:

Alat pengeboran

Jenis pemrosesan:

Penempaan

Ukuran:

5 1/2 ", 7", 9 5/8 ", 13 3/8"

Bore od:

6 ", 7 5/8", 10 5/8 ", 14 3/8"

ID Bore:

4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"

Min bore:

2 ", 2 3/8"

Jenis Thread:

5 1/2 "LCSG, 7" LCSG, 9 5/8 "LCSG, 13 3/8" LCSG

Peringkat tekanan:

4351, 3626 lb/in2

Standar:

API 5 Kt

Warna:

Disesuaikan

menggunakan:

Pengeboran dengan baik

Industri yang berlaku:

Energi & Penambangan

Produk-produk terkait

Kepala semen OEM Tersedia untuk Produsen Peralatan Perminyakan

Dapatkan Harga Terbaik

Sistem kepala semen multi-plug untuk pekerjaan semen sumur minyak yang efisien

Dapatkan Harga Terbaik

Kepala Semen yang tahan lama dengan bagian yang bisa diganti untuk umur panjang

Dapatkan Harga Terbaik

Rakitan Kepala Semen yang Dapat Disesuaikan dengan Konektor Cepat untuk Pemasangan Mudah

Dapatkan Harga Terbaik

Hubungi kami

86-519-83553967

Leo@service-js.com

86-519-83553967

Hubungi sekarang

Deskripsi Produk

Factory Cheap Price Differential Fill up Double Valve Casing Float Shoe

Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. Also, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures great accuracy of cement slurry displacement.

Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in2)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Company Profile

Our Factory

Device Image

Exhibition

Certifications

Product Packaging

Frequently Asked Questions

Q1: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry as priority.

Q2: Could I have prices of your products?

A: Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.

Q3: Can I get a lower price if I order large quantities?

A: Yes, cheaper prices are available for larger quantity orders.

Q4: Do you inspect the finished products?

A: Yes, each step of production and finished products will be inspected by our QC department before shipping.

Q5: What about the lead time for the mass production?

A: The lead time depends on the order quantity and the season you place the order.

Tag：

API 5CT Double Valve Casing Float Shoe 2KG for Well Drilling

API 5CT casing float shoe

double valve float shoe for drilling

well drilling float shoe 2KG

Kepala semen OEM Tersedia untuk Produsen Peralatan Perminyakan

Sistem kepala semen multi-plug untuk pekerjaan semen sumur minyak yang efisien

Kepala Semen yang tahan lama dengan bagian yang bisa diganti untuk umur panjang

Rakitan Kepala Semen yang Dapat Disesuaikan dengan Konektor Cepat untuk Pemasangan Mudah

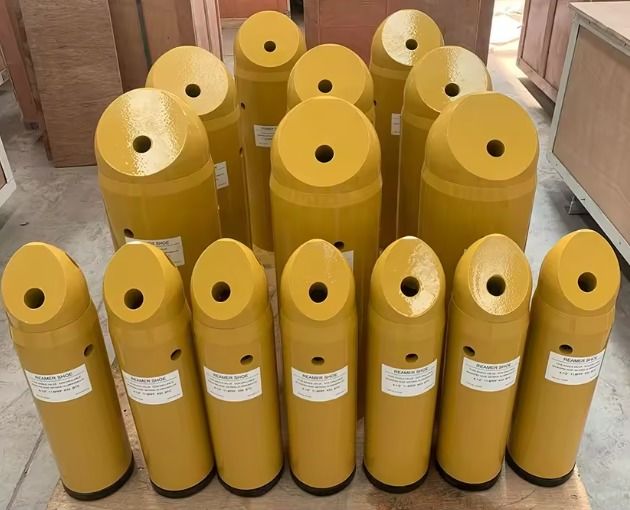

Reamer Float Shoe Dan Float Collar
