API Standard Float Shoes 5-20in for Oilfield Drilling Cementing

API standard float shoes

oilfield drilling float shoes

cementing float equipment 5-20in

Tempat asal:

Jiangsu, Cina

Nama merek:

SWS

Sertifikasi:

API

Hubungi kami

Permintaan Penawaran

API Standard Float Shoes 5-20in for Oilfield Drilling Cementing

Rincian Produk

Dimensi:

5"-20"

Berat:

10 kg

Jenis Thread:

STC LTC BTC EUE NUE XC

Bahan:

N80

Komponen inti:

Katup

Hai katup aliran:

70mm dan 90mm

Suhu segel:

150 ° C (opsional 204 ° C)

Tubuh katup:

Fenolik serat, 70MPA

Bahan Musim Semi:

Perunggu phospher C510

Segel Plunger:

HNBR, 70Mpa

Bore od:

6 "hingga 14 3/8"

ID Bore:

4 3/4 "hingga 12 3/8"

Min bore:

2 "hingga 2 3/8"

Peringkat tekanan:

3626 hingga 4351 lb/in²

Kapasitas produksi:

≥10000 pcs per bulan

Produk-produk terkait

API Standard 2-3/8" Aluminum Alloy Float Shoe for Cementing

Dapatkan Harga Terbaik

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

Dapatkan Harga Terbaik

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi

Dapatkan Harga Terbaik

API Standard Float Shoes 5-20in for Oilfield Drilling Cementing

Dapatkan Harga Terbaik

Hubungi kami

86-519-83553967

Leo@service-js.com

86-519-83553967

Hubungi sekarang

Deskripsi Produk

Hot Product API Cementing Tools Oilfield Drilling Equipment Casing Float Collar Float Shoe

Product Description

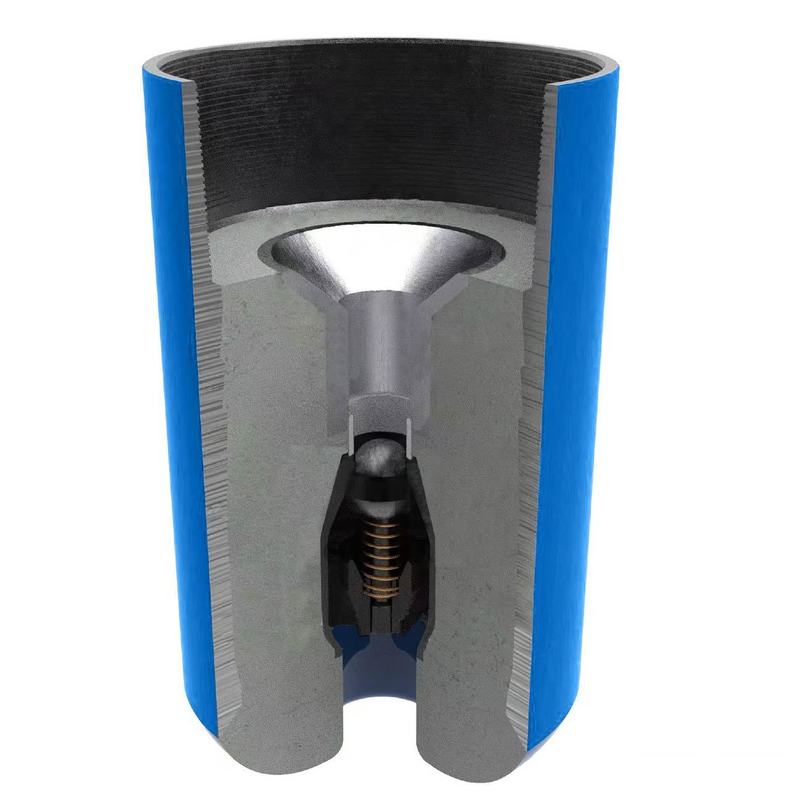

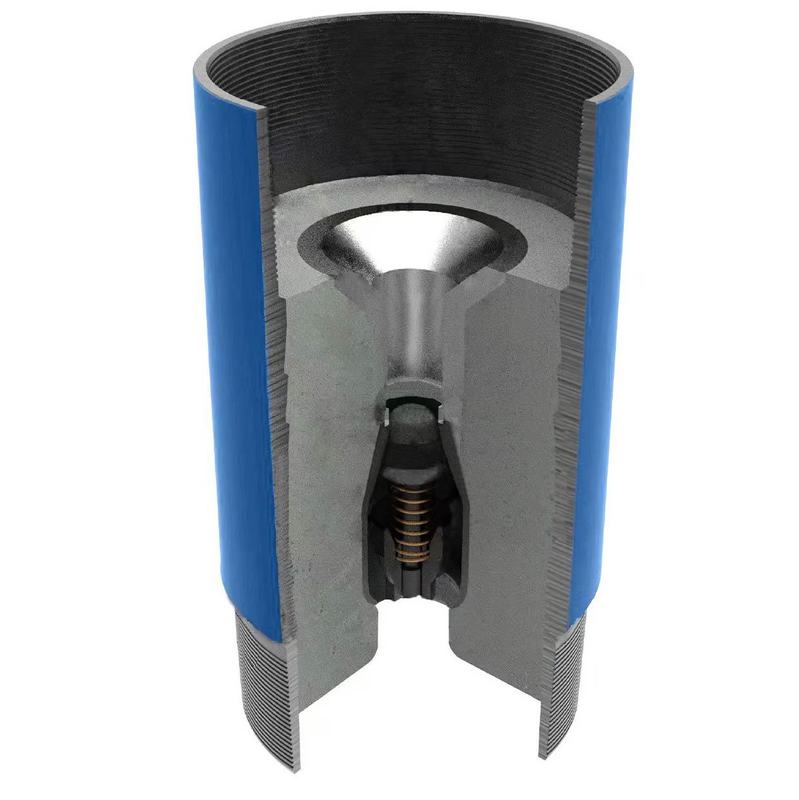

Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. It also provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures precise cement slurry displacement.

Key Features

Hi Flow valves reduce fluid erosion and minimize pressure drop
Available in two sizes: 70mm and 90mm
PDC drillable composite plastic materials used for valve components
Standard seal rated to 150°C with optional 204°C seal
Valve body molded with fibre phenolic, 70MPa and 204°C seal
Spring made from phosphor bronze C510 material with high restoring force and drillable
Plunger seal top molded with HNBR, 70MPa and 204°C seal

Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Our Factory

Device Image

Exhibition

Certifications

Product Packaging

Frequently Asked Questions

Q1: When can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry as priority.

Q2: Could I have prices of your products?

Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.

Q3: Can I get a lower price if I order large quantities?

Yes, cheaper prices are available for larger quantity orders.

Q4: Do you inspect the finished products?

Yes, each step of production and finished products will be inspected by our QC department before shipping.

Q5: What about the lead time for the mass production?

Honestly, it depends on the order quantity and the season you place the order.
