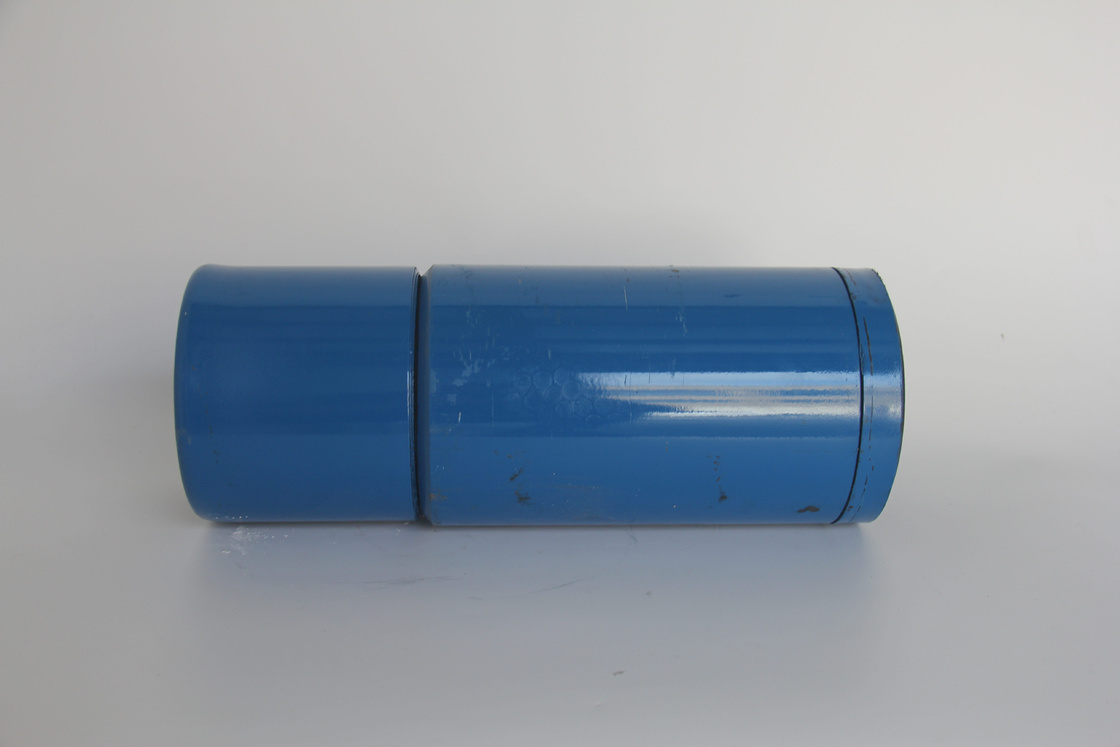

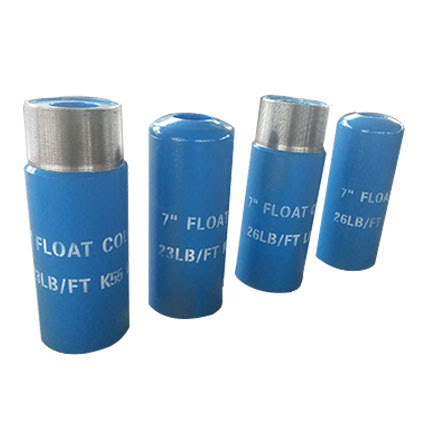

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi

API standard float collar

5 1/2-9 5/8 float collar

15000psi oilfield drilling collar

Tempat asal:

Jiangsu, Cina

Nama merek:

SWS

Sertifikasi:

API ISO

Hubungi kami

Permintaan Penawaran

Rincian Produk

Dimensi:

5"-20"

Berat:

10 kg

Jenis Thread:

STC LTC BTC EUE NUE XC

Bahan:

P110

Ukuran:

5 1/2"-9 5/8"

Tekanan kerja:

15000psi

Bore od:

6 "-14 3/8"

ID Bore:

4 3/4 "-12 3/8"

Min bore:

2 "-2 3/8"

Ukuran katup:

70mm dan 90mm

Suhu segel:

150 ° C (opsional 204 ° C)

Bahan Tubuh Katup:

Fenolik serat

Tekanan tubuh katup:

70Mpa

Bahan Musim Semi:

Perunggu phospher C510

Bahan segel plunger:

HNBR

Produk-produk terkait

Kepala semen OEM Tersedia untuk Produsen Peralatan Perminyakan

Dapatkan Harga Terbaik

Sistem kepala semen multi-plug untuk pekerjaan semen sumur minyak yang efisien

Dapatkan Harga Terbaik

Kepala Semen yang tahan lama dengan bagian yang bisa diganti untuk umur panjang

Dapatkan Harga Terbaik

Rakitan Kepala Semen yang Dapat Disesuaikan dengan Konektor Cepat untuk Pemasangan Mudah

Dapatkan Harga Terbaik

Hubungi kami

86-519-83553967

Leo@service-js.com

86-519-83553967

Hubungi sekarang

Deskripsi Produk

API Cementing Tools Oilfield Drilling Equipment Casing Float Collar Float Shoe Standard Single Valve

Product Description

Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. It also provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures precise cement slurry displacement.

Key Features

Hi Flow valves to reduce fluid erosion and minimize pressure drop
Available in two sizes: 70mm and 90mm
PDC drillable composite plastic materials for valve components
Standard seal rated to 150°C with optional 204°C seal
Valve body molded with fiber phenolic, rated for 70MPa and 204°C
High-quality spring from Canada Victory Spring Company
Plunger seal top molded with HNBR, rated for 70MPa and 204°C

Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Our Factory

Certifications

Frequently Asked Questions

Q1: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry as priority.

Q2: Could I have prices of your products?

A: Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.

Q3: Can I get a lower price if I order large quantities?

A: Yes, we offer cheaper prices for larger quantity orders.

Q4: Do you inspect the finished products?

A: Yes, each step of production and finished products will be inspected by our QC department before shipping.

Q5: What about the lead time for the mass production?

A: The lead time depends on the order quantity and the season you place the order.
