ISO API N80 Float Shoe with Carbon Steel or 304 Stainless Steel Construction and 1 Year Warranty for Well Drilling

MOQ:	1

Detail Information

Deskripsi Produk

Detail Information

Tempat asal:

CINA

Sertifikasi:

API ISO

Berat:

5 kg

Tipe katup:

Katup tunggal & katup ganda

Jenis mesin:

Alat pengeboran

Jenis pemrosesan:

Penempaan

Bahan:

Baja karbon / baja tahan karat 304

Ukuran:

5 1/2 ", 7", 9 5/8 ", 13 3/8"

Bore od:

6 ", 7 5/8", 10 5/8 ", 14 3/8"

ID Bore:

4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"

Min bore:

2 ", 2 3/8"

Jenis Thread:

5 1/2 "LCSG, 7" LCSG, 9 5/8 "LCSG, 13 3/8" LCSG

Peringkat tekanan:

4351, 3626 lb/in2

Komponen inti:

Katup

Moq:

1 set

Penggunaan:

Peralatan Pengeboran Ladang Minyak

Industri yang berlaku:

Energi & Penambangan

Menyoroti:

Carbon Steel Float Shoe

304 Stainless Steel Float Shoe

1 Year Warranty Float Shoe

Deskripsi Produk

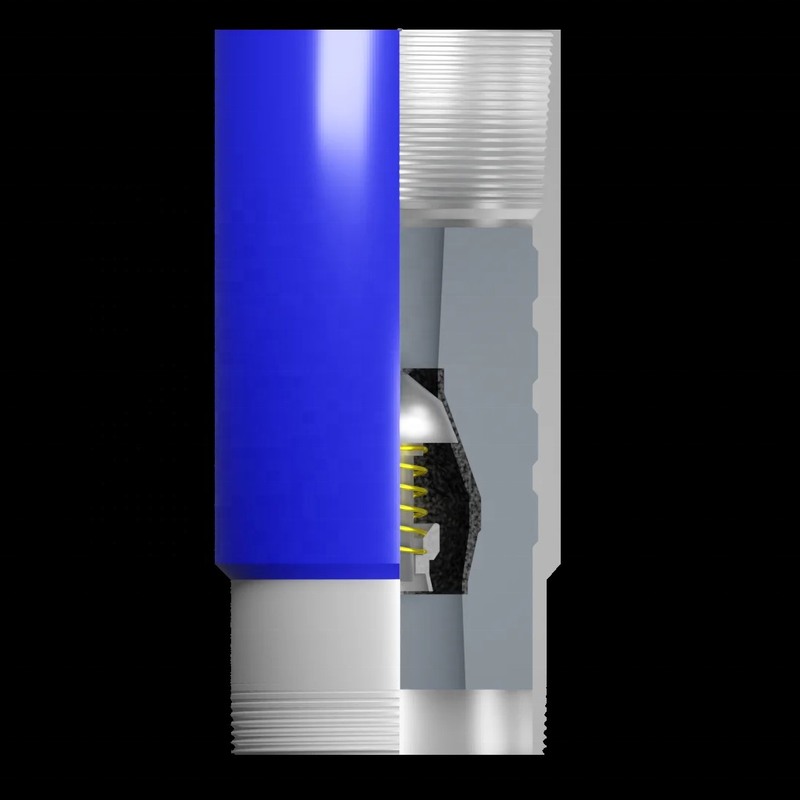

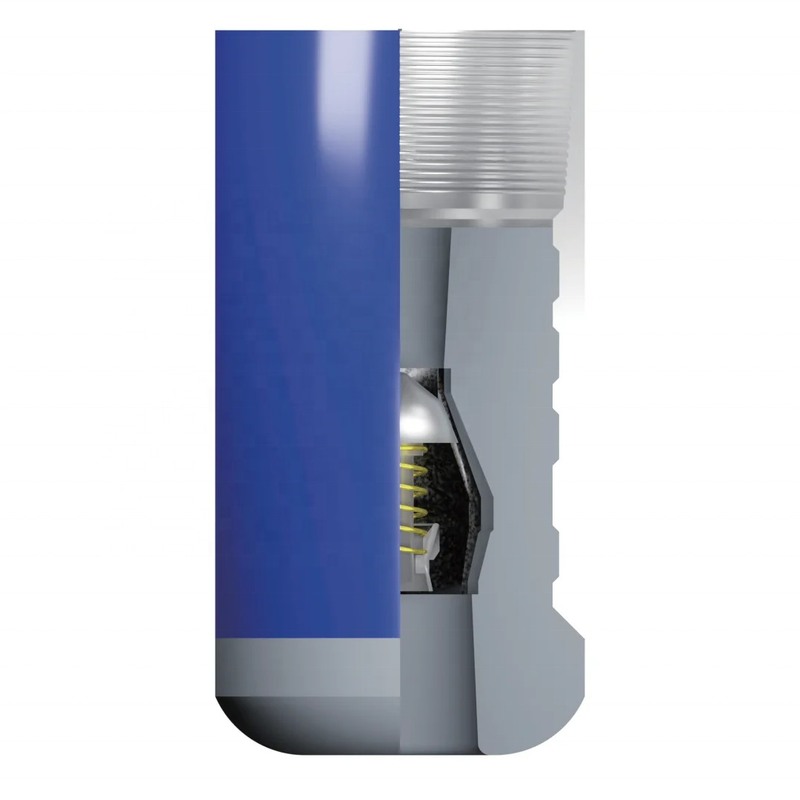

ISO API N80 BTC/LTC Squagging Cementing Float Shoe with Single or Double Valve

Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. It also provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures precise cement slurry displacement.

Specifications

Name	Size (in)	Bore O.D. (in)	Bore I.D. (in)	Min Bore Parameter (in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Company Profile

Our Factory

Device Image

Exhibition

Certifications

Product Packaging

Frequently Asked Questions

Q1: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry as priority.

Q2: Could I have prices of your products?

A: Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.

Q3: Can I get a lower price if I order large quantities?

A: Yes, cheaper prices are available for larger quantity orders.

Q4: Do you inspect the finished products?

A: Yes, each step of production and finished products will be inspected by our QC department before shipping.

Q5: What about the lead time for the mass production?

A: The lead time depends on the order quantity and the season when you place the order.
