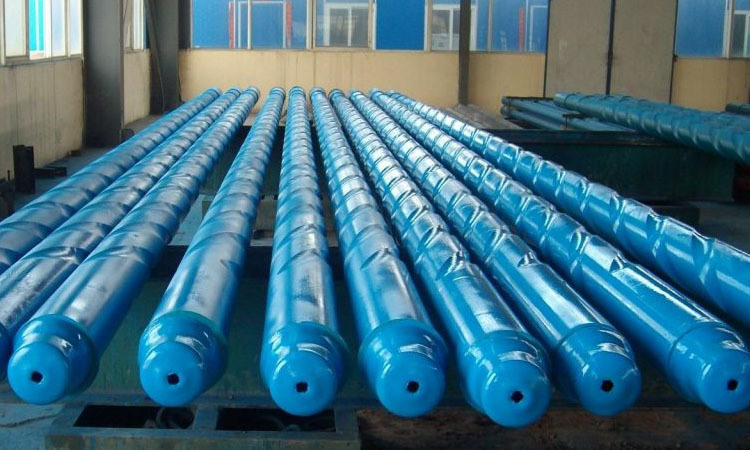

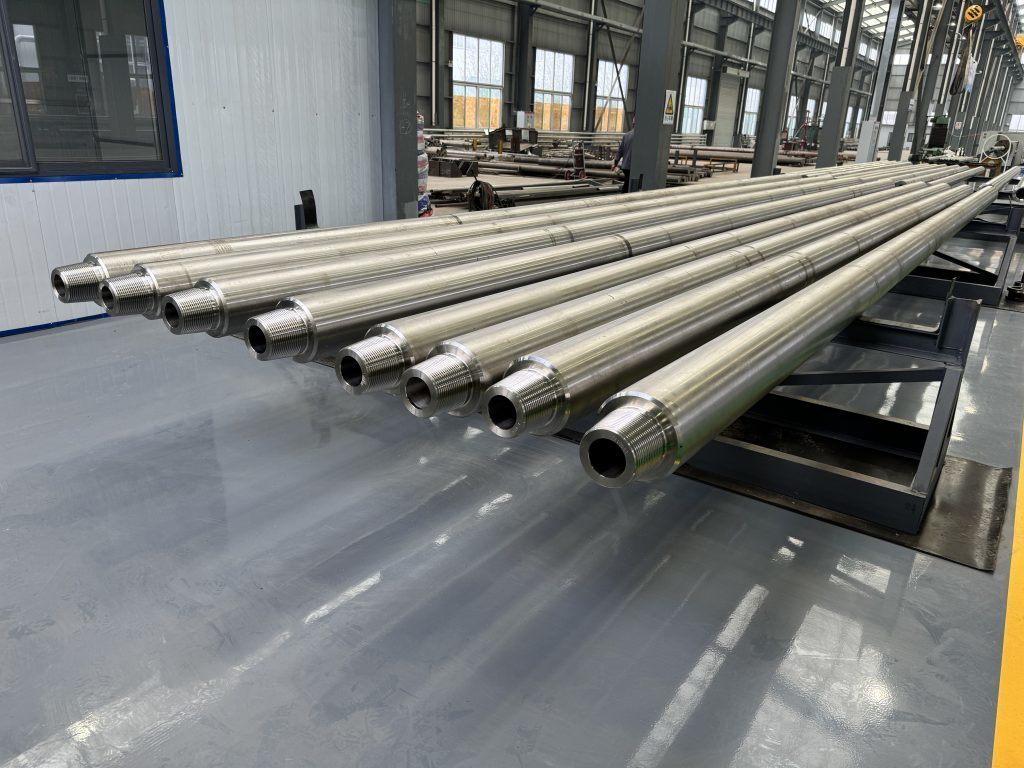

9150 Length NC26-35(2 3181F) 82.9 mm Bevel Diameter Drill Collar for Oil Well Drilling Oil Field Equipment

82.9 mm bevel diameter drill collar

NC26-35 drill collar for oil wells

oil field drilling equipment with warranty

Nama merek:

SWS

Hubungi kami

Permintaan Penawaran

9150 Length NC26-35(2 3181F) 82.9 mm Bevel Diameter Drill Collar for Oil Well Drilling Oil Field Equipment

Rincian Produk

Nama Produk:

Kerah Bor

Tabel Nomor dan Koneksi:

NC26-35(2 3181F)

Diameter Luar (Inci):

3-1/2

Diameter luar (mm):

88.9

Diameter Dalam (Inci):

1-1/2

diameter dalam (mm):

38.1

Panjang (mm):

9150

Diameter Kemiringan (mm):

82.9

Rasio Kekuatan Lentur:

2.42:1

Produk-produk terkait

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar

Dapatkan Harga Terbaik

88.9 mm Outside Diameter 144.5 mm Bevel Diameter NC44-60 Drill Collar

Dapatkan Harga Terbaik

Oil Well Drilling Oil Field Equipment NC44-60 Drill Collar 6 Inch Outside Diameter

Dapatkan Harga Terbaik

Drill Collar NC35-47 9150 mm Length for Oil Well Drilling Oil Field Equipment

Dapatkan Harga Terbaik

Hubungi kami

86-519-83553967

Leo@service-js.com

86-519-83553967

Hubungi sekarang

Deskripsi Produk

COMPANY PROFILE

9150 Length NC26-35(2 3181F) 82.9 mm Bevel Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 0

We(SWS) is a professional company engaged in the development, manufacturing, sales and service of downhole oil tools; Advanced downhole tool manufacturing technology from the U.S. and Canada is used to provide casing accessories that exceed industry quality standards to meet the challenging cementing tool needs of oilfields around the world.

To meet these demands, we have established a manufacturing facility of 78000sq ft. This facility has modern CNC machining, fabrication and processing equipment, testing and inspection facilities,together with raw material and production storage.

MAIN PRODUCTS

Our main products are: float collar and shoes, stage collars, liner hangers, Packer, cement plugs, cement heads, centralizers, casing and tubing, pup joints, coupling, etc.

9150 Length NC26-35(2 3181F) 82.9 mm Bevel Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 1

CERTIFICATES

PRODUCT DESCRIPTION

Drill Collar is the basic component in the BHA which provides weight on the bit for drilling and keeps the drillsting in tension. Our Drill Collar has been approved by the NS-1 certification, it is manufactured from 4145H modified quenched and tempered steel, strict metallurgical specifications are followed to insure that full length heat treating produces a consistent maximum depth of hardness.

Features and Benefits

A hardness range of 285 to 341 BHN and a Charpy impact value of 40 ft-lbs are guaranteed at evenly distributed 16 points in any sections at room temperature;

Connections are completed (phosphate coated) to protect them from the elements after machining and to help prevent galling upon initial make-up;

Thread roots are cold rolled on APl and H-90 connections;

9150 Length NC26-35(2 3181F) 82.9 mm Bevel Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 3

FACTORY PHOTOS

9150 Length NC26-35(2 3181F) 82.9 mm Bevel Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 9

EXHIBITION

9150 Length NC26-35(2 3181F) 82.9 mm Bevel Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 10

PACKAGE & TRANSPORTATION

CONTACT INFORMATIONS

Tel	+86 18015889633
Whatsapp	+86 18015889633
Mail	leo@service-js.com
Web	www.jssws-oil.com
